INTENSIFIED CAMERAS

​​pco.dicam series is an sCMOS camera in-build with an image intensifier technology to capture the image in full HD. The intensified cameras are made up of a five different parts; image intensifier, optical coupling lens systems, sCMOS image sensor, 10G fibre optic-based interface & a unique camera system.

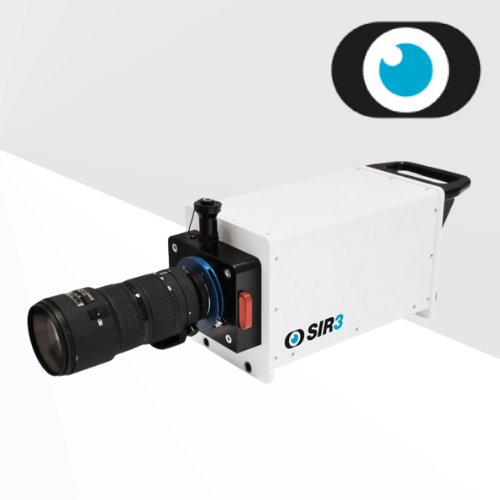

SIL3


The FRAME imaging technology offers the unique ability to acquire and store multiple exposures in one frame of a standard camera sensor. This new Frequency Recognition Algorithm for Multiple Exposures (FRAME) imaging concept uses an image-coding strategy, where different exposures are given a unique structural code allowing multiple on-chip exposures before readout.

At the end of such a superimposed recording each image is unlocked by its unique structural code. This on-chip recording of structural coded images opens up a variety of new measurement schemes such as ultra-high-speed imaging, instantaneous 3-dimensional imaging, simultaneous, multispectral imaging.
FRAME Imaging
FEATURES
4 images at 1 MHz frame rate using a standard high-resolution camera

FRAME illumination unit for structural light exposure
​
Cost-effective alternative to expensive high-speed cameras

Instantaneous 3-D imaging

Coded light sheets at different spatial locations are used in combination with FRAME imaging technology for 3D laser imaging of e. g. 3D concentration fields of LIF species in flames.
Simultaneous, multispectral imaging
​

Performing multispectral imaging with FRAME allows the simultaneous recording of images with different wavelength information. For example, species-specific LIF processes in biological samples can be recorded parallel in time for higher throughput screening.

​Framing Images

High-speed spray shadowgraphy applying FRAME imaging technology
High-speed spray images reconstructed from one FRAME recording

​Specifications

FRAME HS Shadow Illumination Unit

Min. interframe time 1μs
Min. exposure time 1μs
Number of channels 4
Illumination lens 180 mm Nikon f-mount
Min. exposure time 1μs
Min. exposure time 1μs
Working distance 50 - 70 cm
Illumination field of view 12 x 12 mm2
FRAME modulation frequency 40 lines/mm in measurement plane*
Dimensions 42 x 26 x 13 cm³ (W x L x H)
Weight 5 kg
Operating temperature 10 to 40°C
Power requirements 100 - 230 VAC
