LIBS Analysers
Laser-Induced Breakdown Spectroscopy (LIBS) is a type of atomic emission spectroscopy for the qualitative and quantitative chemical multi-elemental analysis in real time for a wide range of applications.
CORALIS
The CORALIS system unites the two high complementary techniques LIBS and RAMAN. The unique two-wing echelle spectrometer as core part is able to provide high resolution, large range and high light-throughput on an unbeatable level.
|
SPECIFICATIONS
LIBS
Laser 1064nm (up to 50 mJ pulse energy) Wavelength range 190 nm – 520 nm Resolution 13 pm – 35 pm RAMAN Laser 532 nm and 785 nm ( up to 50 mW) Wavelength range 530nm – 950 nm (up to 6000 cm-1) Resolution 532nm: 2.5 – 2.0 cm-1 785nm: 1.7 – 1.4 cm-1 |
LIBSLab
Modular and compact laboratory analyser for the qualitative and quantitative multi-elemental analysis with LIBS. Chemical multi-elemental analysis with LIBS in modular benchtop design.
|
SPECIFICATIONS
Optical setup optimized for 1,064 nm LIBS laser optimized for 266 nm LIBS laser Laser spot diameter, typ. 1 300 µm 50 µm XYZ stage travel range X=155 mm, Y=95 mm, Z=50 mm Pilot laser wavelength 635 nm |
PANALYZER
The PAnalyzer (Panel Analyzer) has especially been developed for the fast and contact-free quality control of large-area samples in industrial production lines. Spatially resolved analysis of the lateral element homogeneity is provided by means of laser-induced breakdown spectroscopy (LIBS) applied to a motorized XY measuring head.
|
SPECIFICATIONS
Measuring method
Measurement duration < 1 s/measurement point Limit of detection (LOD) < 10 ppm Sample 3 (1,200 x 1,600 x 4) mm max. 10 kg |
LIBSORTER 300
The flagship of ARYELLE echelle spectrometer series with very high spectral resolution in the VUV or UV-VIS-NIR wide-range with 400 mm focal length – for precise elemental analysis with LIBS and Raman spectroscopy.
|
SPECIFICATIONS
Wavelength Range Dependent on the CCD/ICCD detector Focal Length 400 mm Aperture f/10 Spectral Resolving Power 9,000-50,000 (λ / ∆λ FWHM ) Spectral Resolution FWHM Dependent on the CCD/ICCD detector Dimensions w/o Detector (L x W x H) (438 x 200 x 232) mm Weight w/o Detector 12 kg |
Related Instruments

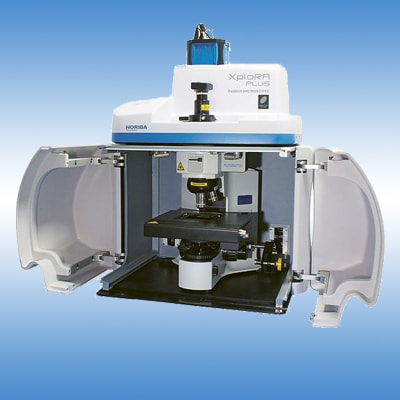

Raman Spectroscopy
|

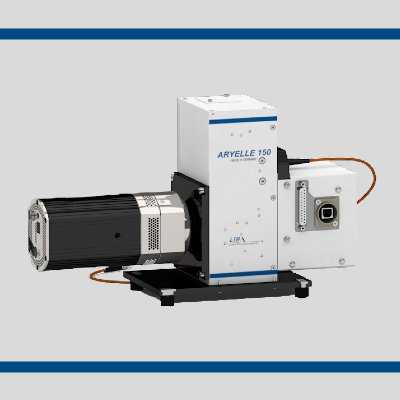

Echelle Spectrograph
|
