OPTICAL TABLE ACCESSORIES
Auxiliary Work Surface
|
A 23" deep shelf supports up to 400 lbs. and can be ordered with UL-approved lighting, electrical outlets, and additional shelves (electrical options US only).
Completely independent support won’t interfere with vibration isolation. |
Laser Mounting Shelf
|
Mount a large laser beneath the tabletop on this honeycomb mounting shelf suspended from the bottom surface of the tabletop. The 2" thick honeycomb shelf is provided in two sizes: 15" x 48" and 15" x 68".
|
Tabletop Enclosure
|
For a draft-free or environmentally controlled atmosphere, add a tabletop enclosure constructed of durable acrylic.
The 32" high enclosure has aluminum framework, a rigid composite roof, and 1/4" acrylic side and end panels. |
Laser Port
|
An optional 2" diameter sleeved hole through the tabletop enables a laser beam to be directed to the work surface from a mounting shelf below the table.
|
Lap Splice Kit
|
When an unobstructed tabletop is not an issue, a splice kit can be used to join tables of the same thickness. The kit consists of a top plate predrilled to match the tabletop hole pattern and two channels that are bolted to the bottom surfaces with 1/4-20 holes (drilled and tapped by the customer).
|
Modular Butt Splice
|
When joining tables, a butt splice is required for unobstructed top surface and maximum rigidity. Two 3/4" thick, matched ground and pinned steel plates are used.
One is precisely aligned and welded to the top and bottom surfaces. The second plate is attached with fasteners, the joining table is aligned with the first and the plate is welded to it. |

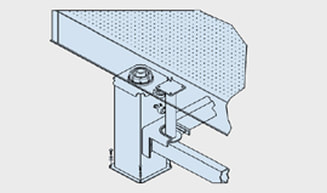

Seismic Restraint
|
For earthquake-prone areas, these retrofittable restraints will withstand a 1g seismic load of 4000 lbs. maximum without a failure.
No contact between the table and restraint system during normal operation, assuring vibration isolation performance is not degraded. |
Portable Air Compressor
|
This compact, fully-integrated air compressor is perfect for the operation of several table systems in locations where a house compressed air line is not available.
Extremely quiet in operation (35 dB(A)/1 m), the PAC is complete with switch to maintain preset pressure, accumulator tank, pressure regulator/filter, gauges, and safety valve. |
