transient absorption
Magnitude Instruments empowers researchers to explore the boundaries of transient absorption sensitivity through their range of compact, self-contained spectrometers. Designed for user-friendly operation on par with UV-Vis or FTIR instruments, these spectrometers facilitate seamless experimentation. By transcending previous limitations, researchers can embark on unprecedented scientific endeavors, leading to discoveries that surpass imagination.
This is the opportune moment for researchers to leverage the capabilities of Magnitude Instruments. By doing so, they not only accomplish what was previously unattainable but also spark intrigue with the novelty and impact of their work, thus leaving an indelible mark on the scientific landscape.
This is the opportune moment for researchers to leverage the capabilities of Magnitude Instruments. By doing so, they not only accomplish what was previously unattainable but also spark intrigue with the novelty and impact of their work, thus leaving an indelible mark on the scientific landscape.
enVISTA
A turnkey, research-grade TA spectrometer in a compact package that doesn’t sacrifice performance. Ideal entry-level A UV/visible/near-IR transient absorption spectrometer with unequaled sensitivity.
The enVISTA™ is a nanosecond transient absorption spectrometer with industry standard probe wavelength ranges of 300-1050 nm and 800-1650 nm. Collect better data in less time than ever with this ultra compact, all-in-one, spectrometer that is simple to operate and even easier to maintain. |
FEATURES
Detection Limits (Single Frequency) 10-7 ΔO.D. (1 hr); 10-6 ΔO.D.(<1 min) Time Resolution 5 ns Time Range Up to 130 ms (depending on laser rep-rate) Spectral Resolution 1 – 10 nm Spectral Range 300 – 1050 nm or 800 – 1650 nm Repetition Rate Variable 0.2 – 19 kHz (Automated Control, Internal Laser) Lower repetition rates available. Excitation Wavelength 266 nm, 355 nm, 532 nm, 1064 nm, or dual 355/532 nm (Internal Laser) Sampling Rate Up to 2 ns |

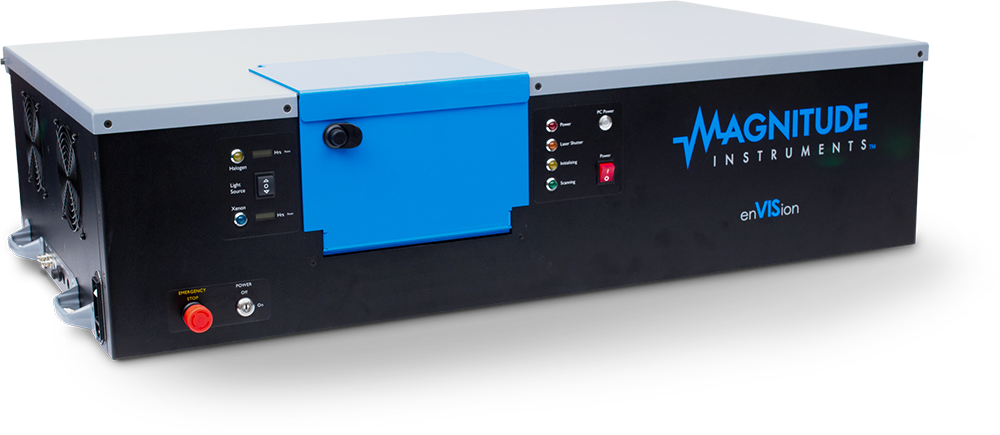

enVISION
Nanosecond-to-millisecond response in a self-contained TA instrument operating in the ultraviolet/visible/near-infrared range.
The enVISion™ delivers broadband nanosecond TA spectroscopy that seamlessly probes the entire spectral region over UV, visible and near-infrared wavelengths with 5 ns time resolution and up to milliseconds of delay time. Record the entire time axis in a single laser shot for fast data collection with unprecedented sensitivity. All from an all-in-one instrument that’s as easy to use as a UV-Vis spectrometer; that fits comfortably on any table or lab bench. |
FEATURES
Detection Limits (Single Frequency) 10-7 ΔO.D. (1 hr); 10-6 ΔO.D. (<1 min) Time Resolution ≥5 ns (250 – 1700 nm) ≥14 ns (1700 – 2550 nm) Time Range Up to 4 ms (standard) Spectral Resolution 1-10 nm, Automated Control Spectral Range 250 – 2550 nm Repetition Rate 0.2 – 19 kHz (Automated Control, Internal Laser) Lower repetition rates available. Excitation Wavelength 355 nm, 532 nm, 1064 nm (Internal Laser) Sampling Rate Up to 2 ns per sample |
inspIRe
It’s the first broadband nanosecond mid-IR TA spectrometer in a true one-box platform—one that includes the pump laser, optical components, and all electronics. Safety. Versatility. Performance. Ease of use, in one compact unit.
The inspIRe™ utilizes our patent-pending noise suppression technology to deliver an unprecedented 100 ΔnanoO.D. detection detection limit with full 2D data collection of absorption versus time and wavelength—changing the game for the emerging science of mid-IR TA spectroscopy. Chemists, physicists, biochemists, engineers and material scientists and more can deploy and utilize electronic and vibrational spectroscopy in the mid-IR like never before. |
FEATURES
Detection Limits (Single Frequency) 10-7 ΔO.D. (1 hr); 10-6 ΔO.D. (<1 min) Time Resolution ≥5 ns (standard) Time Range Up to 4 ms (standard) Spectral Resolution 2.5 – 20 cm-1, Automated Control Spectral Range 2.5 – 10 µm (1000 – 4000 cm-1) Repetition Range Variable 0.2 – 19 kHz (Automated Control, Internal Laser) Lower repetition rates possible. Excitation Wavelength 355 nm, 532 nm, 1064 nm (Internal Laser) Sampling Rate Up to 2 ns per sample |
Related Instruments
Raman Spectrometers
|
|
*Pictures shown above are for reference only. Actual product may differ slightly.
**Some products may not be available in all countries. Please contact us for further information and clarification. |
