X-Ray Tubes

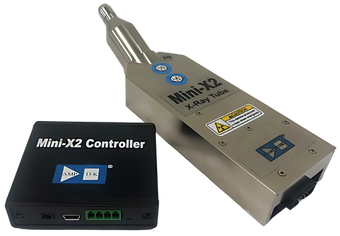

The Mini-X2 is a miniature X-ray tube system which includes the X-ray tube, the power supply, the control electronics, and the USB communications to the computer.  It is optimised for compact X-ray fluorescence (XRF) applications.  The Mini-X2 has been designed to simplify the XRF process by providing a grounded anode, USB control of current and voltage, a simple collimator mount on 50kV models, and ease of operation.

The Mini-X2 consists of two components: the Mini-X2 X-ray tube module and the Mini-X2 Controller.

The X-ray tube module includes the tube and high voltage power supply. The Controller includes the USB communications and software control. It can be configured, via software, to support any of the X-ray tube modules. A 10 pin flex cable connects the Controller and the X-ray tube module. Connections to the Controller are 12 VDC power, USB for command and control, and an AUX connector with a safety interlock and a driver for a warning light.

MINI-X2

X-ray tube Module

The X-ray tube module includes the tube and high voltage power supply.  Several different options are available:
Max HV 50kV 70kV
Max Power 4W 10W 10W
Anode Ag, Au, Rh, or W Ag, Au, Rh, or W Au, Rh, or W
FEATURES
  • 4 or 10 W Output Power
  • 10 to 50 kV or 35 to 70 kV
  • 5 to 200 µA (See isopower curves)
  • Ag, Rh, Au, or W Target (Ag not available in 70kV)
  • USB Controlled
APPLICATION
  • X-Ray Fluorescence (XRF)
  • Portable and bench top instruments
  • Online processing
  • Teaching lab
  • Vacuum Application
    • The Mini-X2 can be configured with a standard conflat for vacuum applications.

SPECIFICATION

 50kV 70kV
Target Material Silver (Ag), Gold (Au), Rhodium (Rh), Tungsten (W) Gold (Au), Rhodium (Rh), Tungsten (W)
Target Thickness Ag and Rh = 0.75 µm (±0.1 µm) Au and W = 1.00 µm (±0.1 µm)
Tube voltage 10 to 50 kV 35 to 70 kV
Tube current 5 µA min / 200 µA max See Figure 2 below 5 µA min / 200 µA max See Figure 2 below
Approximate Dose Rate Ag and Rh: 1 Sv/h (100 Rem/hr) @ 30 cm on axis, 50 kV and 80 µA Au and W: 2.2 Sv/h (220 Rem/hr) @ 30 cm on axis, 50 kV and 80 µA data unavailable
Continuous Output Power 4 W or 10 W max at 100% duty cycle See Figure 2 below 10 W max at 100% duty cycle See Figure 2 below
Window Material Beryllium (Be); window at ground  Beryllium (Be); window at ground
Window Thickness 125 µm  125 µm
Focal Spot Size Approximately 2 mm
Cathode Type Tungsten (W) filament  Tungsten (W) filament
HV Polarity Grounded anode  Grounded anode
High Voltage Stability <0.1%  <0.1%
Output Flux Stability <0.3% (temperature stabilized)  <0.3% (temperature stabilized)
Output Cone Angle 120° (See figures 3 and 4 below)  120° (See figures 3 and 4 below)
Cooling Air Cooled  Air Cooled
Leakage Radiation at 5 cm with safety plug installed <5 µSv/h (0.5 mrem/h) no safety plug attachment
Power Consumption 4 W tubes: 9 W  @ full power 10 W tubes: 18 W @ full power  10 W tubes: 18 W @ full power
Input Voltage 12 VDC (AC adapter included)  12 VDC (AC adapter included)
Control USB, mini-USB connector (cable included)  USB, mini-USB connector (cable included)
Settling Time Typical <1 s  Typical <1 s
Weight ~400 grams  <700 grams
Humidity 30 to 90% noncondensing  30 to 90% noncondensing
Operating Temperature Range -10 °C to +50 °C  -10 °C to +50 °C
Storage Temperature Range -25 °C to +60 °C  -25 °C to +60 °C
Safety Controls and Indicators 1) External Hardware Interlock 2) Flashing LED 3) Beeper 1) External Hardware Interlock 2) Flashing LED 3) Beeper
Software Mini-X2 Control software to control voltage and current. Mini-X2 API for custom programming applications. Mini-X2 Control software to control voltage and current. Mini-X2 API for custom programming applications.
Warranty One year or 2000 hours, whichever comes first One year or 2000 hours, whichever comes first

Related Instruments

X-Ray Spectroscopy

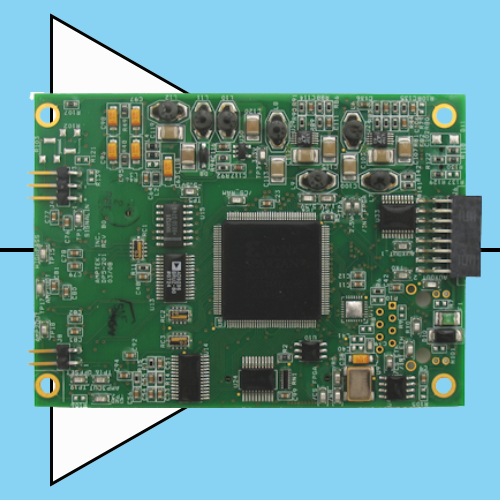

Digital Pulse Processors

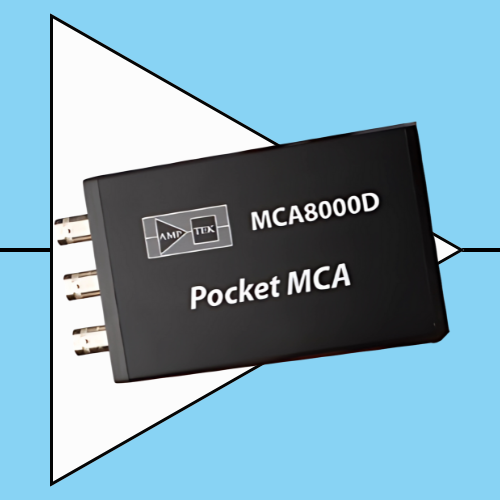

X-ray MCAs

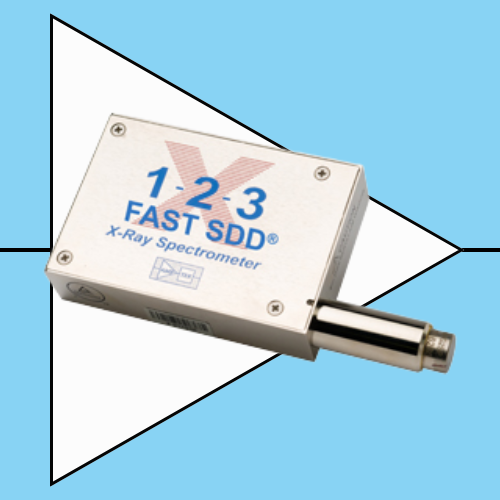

X-Ray Detectors
