GHz WideBand Amplifiers
All of our voltage amplifiers come with a wide variation; Lower and Upper Cut-Off Frequency, Rise/Fall Time, Maximum Output Voltage & many other adjustable components.
GHz Wideband High Speed Fixed Gain HSA
GHz Wideband High-Speed Fixed Gain Amplifier series offers a high-speed, high gain well-balanced combination, making them ideal for time-resolved measurements.
Wide bandwidth (kilohertz to gigahertz) is very important for accurate pulse and transient measurements, mainly if signals with different pulse lengths and varying decay times are processed. There are two main types of GHz Wideband Amplifiers in the HSA series.. |
FEATURES
Ultra-wide bandwidth from 10 kHz up to 2.5 GHz Gain up to 60 dB (x 1,000) Transimpedance gain with photodetectors up to 50,000 V/A Very low input noise down to 310 pV/√Hz (6.2 pA/√Hz) Integrated DC-current path for biased photodetector applications Two identical signal outputs (HSA-Y series) DC-monitor output (HSA-Y series) High-quality EMI-shielded case HSA-Y DC-monitor output; useful for photodetector alignment/ cw-power control/ measurement of low frequency background signals 2 identical signal outputs; signal control/ triggering without the need for an external signal splitter. |
1 GHz Variable-gain Voltage Amplifiers Series DUPVA
This ultra-wideband voltage amplifier series is designed for fast and precision measurements with an extensive dynamic range.
The gain frequency response plays a significant role in the precise time-resolved measurement; its independence from any change in gain and its ability to be optimised for being flat over the full frequency range. No gain peaking or significant distortion will occur in pulse and transient measurements. |
FEATURES
Variable gain up to 70 dB (approx. x3000), switchable in 10 dB steps Adjustable Gain; By local gain selector/ opto-isolated remote control interface Bandwidth 1 kHz to 1.2 GHz Bandwidth independent of gain setting (guaranteed) Noise figure down to 1.9 dB (330 pV/√Hz) |
related instruments

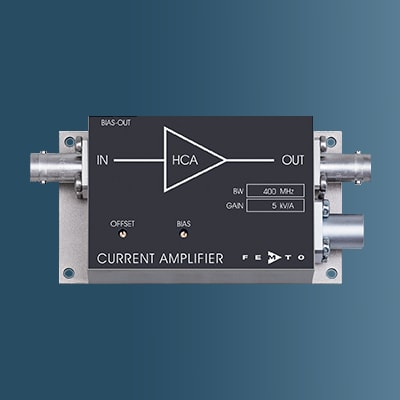

Current Amplifiers
|
