probe station

EVERBEING provides wide variety of probe station for all types of scenarios. The probe stations listed below are only a fraction provide from EVERBEING. EVERBEING's probe station are designed to be highly customisable; each probe station can be retrofitted with different (i.e. micropositioners) depending on the user's needs. The number of micropositioners can also be chosen depending on the probe station's capacity.

​EVERBEING is also very opened to in providing OEM services for other types of probe stations that are not mentioned below; LCD probe station,LED/PD/LD probe station, Hall effect probe station,etc.
Please contact our professionals to provide your information & specifications for customisation.


Features C-Series EB-Series BD-Series
Chuck Stage
Chuck Up/Down
Microscope Stage
Platen Lift
Platen Fine Adjustment

millimeter wave probe station


mW probe station singapore
EB-6A
mW probe station singapore
EB-6V
Everbeing’s industry proven mmW probe stations are now available in the international market. Our manual probe stations can fit all brands of frequency extender modules to allow direct connection to RF probes without using additional waveguides from probe to flange.

Available are two versions. EB-6A is specific for Anritsu mmW modules only. All other frequency extenders should use EB-6V. Catalogues are embedded in the links.
​
eb-6a
eb-6V
FEATURES

Vacuum Chuck with RF Auxiliary

Up to 12" Vacuum Chuck

Station Footprint
: 760 x 660 (Wx D)

Station Weight: 80kg

Chuck Stage Type: Coaxial

Chuck Travel Range: 6” x 6”

Chuck Fine Resolution: 1 µm

EB-6A
Platen Dimension
250 mm Inner, 450mm Outer

EB-6B
Large Micropositioners for Mounting
VDI, OML, RS, Keysight Extenders
Platen Dimension
120 x 180 mm (North & South)

Industrial Grade


probe station singapore
BD Series
probe station singapore

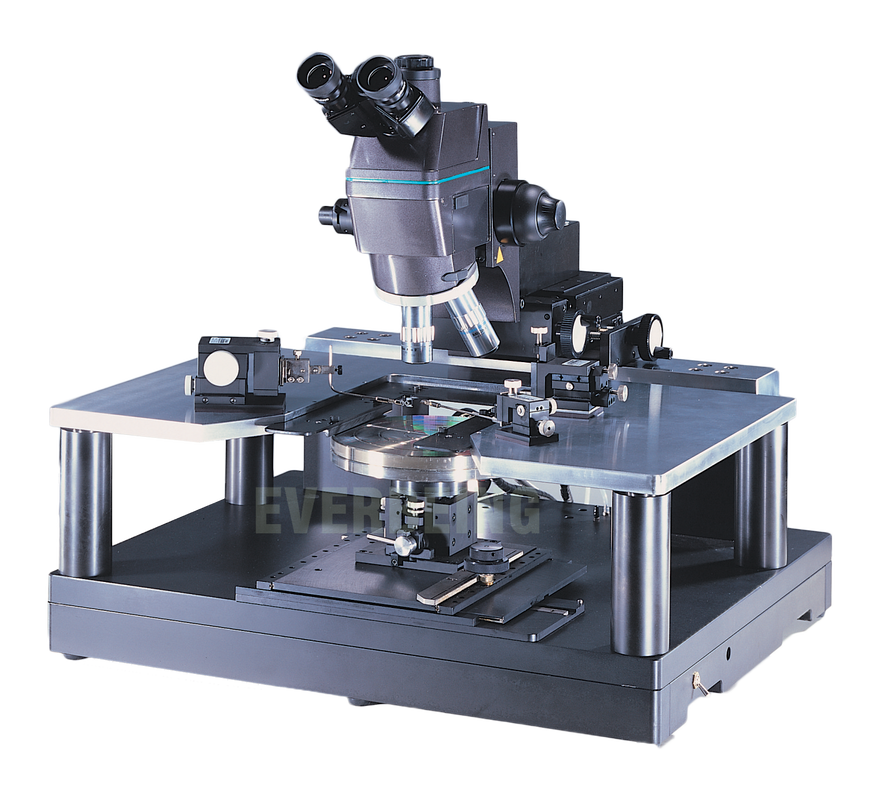

EB Series
FEATURES
​
​​BD Series

Platen Up/Down
Coarse Adjustment (6 mm), Lever Driven
Fine Adjustment (25mm), Hand Wheel Driven

Platen Size
Up to 12 Micropositioner

Microscope Stage
1x1" Travel

Chuck Stage
6″, 8″, 12″ Chuck Size

Vacuum Chuck
8" (BD-8)/ 6" (BD-6) Stainless Steel

Chuck Theta
0-30°

Dimensions
780x660x700mm (WxDxH)(w microscope)

Weight
80kg (w microscope)

Backlash-Free Movement
​

BD Series
FEATURES
​​​
EB Series

Chuck Up/Down

4mm Adjustable

Platen Size
Up to 12 Micropositioner

Microscope Stage
1x1" Travel

Chuck Stage
4", 6″, 8″, 12″ Chuck Size

Vacuum Chuck
8" (BD-8)/ 6" (BD-6) Stainless Steel

Chuck Theta
0-30°

Dimensions
660x660x700mm (WxDxH)(w microscope)

Weight
80kg (w microscope)

Backlash-Free Movement
​

EB series

Educational Grade


Generally, the smaller and more compacted probe stations are better suited for educational purpose.
The C series contains all the functionalities as of the other series, all while being extremely compacted. It is the ideal solution for users with spatial constraints or a need a portable probe station ( can be hand-carried overseas).
​
probe station singapore

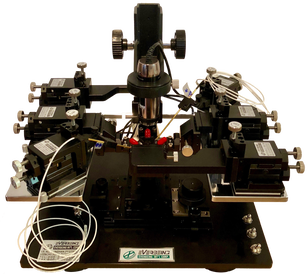

C Series
probe station singapore
C-2 mini
FEATURES
​
C Series

Chuck Up/Down
6mm Adjustable

Chuck Theta
15° (Backlash-Free Movement)

Vacuum Chuck
Up to 12" (with seperate vacuum switch)

Platen Size
4-6 Micropositioner

Chuck Stage
4", 6″ Chuck Size

Fine Position
10 micron resolution

Quick Motion
25 mm drive per knob

Dimensions
500x450x550mm (WxDxH)(w microscope)
Weight
32kg (w microscope)
​
c series
FEATURES

C-2 Series

Chuck Up/Down
6mm Adjustable

Chuck Theta
15° (Backlash-Free Movement)

Vacuum Chuck
2" (with seperate vacuum switch)

Chuck Stage
4", 6″ Chuck Size

Fine Position
10 micron resolution

Quick Motion
25 mm drive per knob resolution
​
Dimensions
320x320x320mm (WxDxH)(w microscope)

Weight
15kg (w microscope)

Accommodates
6 DC micropositioner
4 RF micropositioner
​
c-2 series

Low-Temperature Probe Station


cryogenic probe station singapore
FEATURES

CG-196

Temperature Range
80°K~400°K

10 µm resolution micropositioners

Chuck Size
40mm diameter

Vacuum chamber with NW25 ports

Liquid Nitrogen Dewar
50 liters

Vacuum pump for environment of 10^-3 torr (pump can be upgraded for 10^-6)

Dimensions
1300x1100x1500 mm (WxDxH)

Weight
300kg
cg-196

RF Probe Station


rf probe station singapore
​​The C-2-RF  is a modification of the C-2-mini series into a revolutionary RF testing station with with 4-port with DC biasing capability.
​
c-2-rf
FEATURES

C-2-RF

Lightweight
26kg (portable)

Compacted footprint
360 mm x 330 mmn, glovebox compatible.

4-port Measurement
up to 70 GHz and 2 DC bias

X&Y Chuck
Hot & Cold Chuck; -60℃~200℃
Quick Y&Z Chuck
Y slide pin for easy wafer loading
Z for contact place and release

U-Chuck
Holds DUT & calibration substrate simultaneously with individual vacuum switches
1 µm resolution X-Y-Z linear motion micropositioners with magnetic on/off switch

Integrated Vibration Isolator

EB CHAMBER PLUS PROBE STATION


The Chamber Plus probe station offers a sealed environment for an oxygen-free environment and double as a Faraday cage enclosure for extreme limits for probing. While the DUT is enclosed within the chamber, all probing operations such as chuck stage movement, micropositioning, are still readily available.

With this product you can achieve the following into your test:
  • Temperature range within -60˚C to 400˚C (Optional 500˚C from RT)
  • Low leakage currents down to 20 fA
  • RF probing up to 67 GHz or higher depending on VNA
​
EB CHAMBER PLUS
FEATURES
​
Station Footprint
760 x 660 mm (WxD)

Station Height
450 mm (to Platen)
​700 mm (to Microscope)

No. of Vacuum Switches
4

Platen Dimension
250mm (Inner)
450 mm (Outer)

Chuck Travel Range
6" x 6"

Chuck Fine Resolution
1 μm

Chuck Theta Fine Resolution
0.01°

EB PCB Probe Station


​The EB PCB Probe Station combines mechanical expertise from our flagship probe station and broadens the test parameters to large scale devices such as PCB’s and LCD panels. ​All stations are set on a vibration free table.
EB ECB Probe Station
FEATURES
  • ​Large Gantry Support for fully free X and Y direction setup to probe all areas of your board
  • Simplistic setup for all probing applications
  • Upper and Lower Level Gantry available for simultaneous underside probing
  • Micropositioners with 1 µm Stepping Resolution
  • Support for mmW frequency extenders
  • Mounting Up to 8 Micropositioners
  • Anti-Vibration Table Included
  • Microscope Gantry include for large movement X and Y

Related Instruments

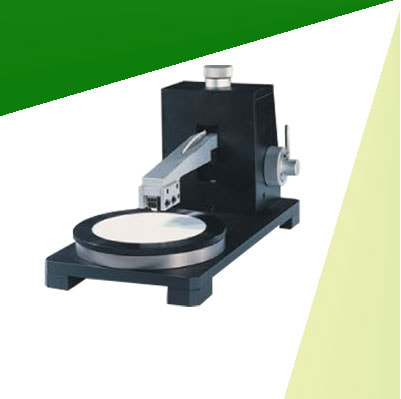

4-Point Probe Station

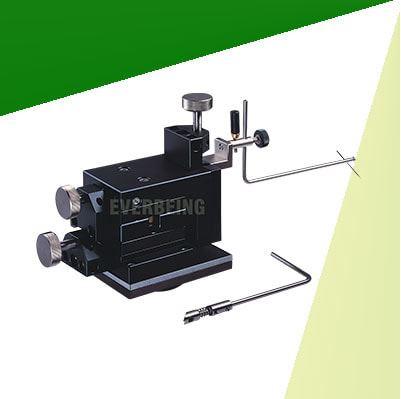

Micropositioners
