Special Amplifiers

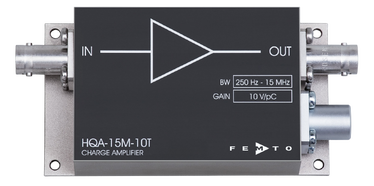

HQA-15M-10T
QUARTZ TUNING FORK CHARGE AMPLIFIER
The HQA-15M-10T is designed for amplifying charge signals generated by tiny tuning forks. It is also best suited for receiving signals from piezoelectric detectors, such as used for the detection of ultrasonic vibrations.
Using the charge amplifier HQA-15M-10T reduces noise typically by one order of magnitude compared to traditional current-to-voltage converter setups. |
FEATURES
High gain of 1 x 1013 V/C Wide bandwidth from 250 Hz to 15 MHz Low input noise of 40 zC/√Hz and 700 pV/√Hz Excellent signal-to-noise ratio across the full bandwidth Ideal for AC coupled charge sources such as pyro- and piezoelectric detectors, tuning fork quartz crystals and longitudinal resonators |
Related Instruments

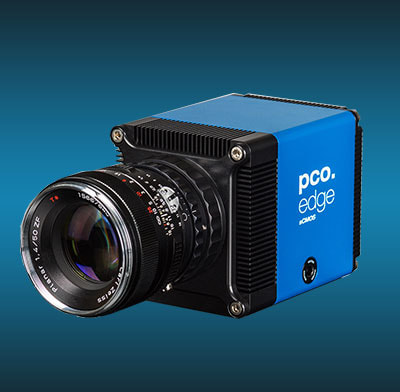

sCMOS Camera
|
