Lock-In Amplifiers

Products >> Accessories & Support >> Amplifiers & Photoreceivers >> Lock-In Amplifiers
The lock-in amplifiers that we provide delivers the highest quality, accurate to use & easy to use, even in the boisterous environment. There are three types of lock-in amplifiers for different applications and environment; miniature, desktop & single broad. All of our lock-in amplifiers come with many variations; voltage input, current input, working frequency & many other adjustable components.

Please contact us for more details.

Miniature Module LIA-MV-150 Series


Miniature Module LIA-MV-150 Series
The LIA-MV-150 is a miniature & powerful lock-in amplifier that delivers precision even in the heaviest & noisy environment.

It is operable two ways; controlled either by switches directly on the amplifier module or externally using a standard digital I/O computer board. The variable working frequency is determined by an external reference signal which may be, e.g. the synchronization signal of a chopper wheel or the modulation signal of a laser.

​The current input is well suited for amplifying signals from high impedance sources like photodiodes or PMTs. In contrast, the voltage input can be used to measure signals from low impedance sources like pyros or coils.
​
LIA-MV-150
FEATURES

Current and voltage input

Working frequency up to 45 kHz

Adjustable sensitivity, time constant and phase

Local and remote control
​
Compact and EMI-shielded case

Desktop Module LIA-MV(D)-200 Series


Desktop Module LIA-MV(D)-200 Series
​The LIA-MV(D)-200 is a desktop lock-in amplifier that is easy-to-use & delivers high performance. It is operated either manually or by remotely via a computer or digital interface. By using a PC with a standard digital I/O card all main settings for sensitivity, time constant, and phase shift can easily control.
​

The LIA-MV(D)-200 an ideal tool for integration into complex or automated test systems as well as for use as a standard lab unit.
LIA-MV(D)-200
FEATURES

Single and dual phase

Rugged aluminum housing

BNC connectors for input and output signals

Working frequency 5 Hz up to 120 kHz

Phase shifter 0° ... +360°

Current and voltage input

Optional reference oscillator module SO

Single-Board Lock-In Amplifier LIA-BV(D)-150


Single-Board Lock-In Amplifier LIA-BV(D)-150
Unlike most desktop lock-in amplifier, the LIA-BV(D)-150 is not an individual module. It is a lock-in board, and it is easy to use. It can control manually through the front panel switches or remotely via a digital interface.

​Extra signal filters are used to configure using jumpers on the board to increase the dynamic reserve for further demanding applications. Overall, they are the perfect choice for designing high-performance multi-channel systems.
LIA-BV(D)-150
FEATURES

Single and dual phase 19" boards

Working frequency 5 Hz up to 120 kHz

Phase shifter 0° ... 360°

Current and voltage input

Parameter control by local switches and opto-isolated digital inputs
​
Mounting kit MK-LIA-2 and reference oscillator module SOM-1 available

related instruments


Spectroscopic Systems - for Luminescence measurements
Current Amplifiers
Voltage Amplifiers

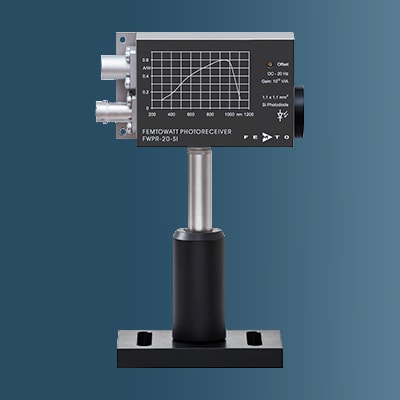

Photoreceivers
Lasers & Diodes - for Laser Stabilisation
*Pictures shown above are for reference only.  Actual product may differ slightly.
**Some products may not be available in all countries. Please contact us for further information and clarification
.
