pHOTORECEIVERS
Most of the photoreceivers use Si or InGaAs PIN photodiodes with other special design components to provide precise measurements with the lowest noise and at the best gain for all the different applications.
Photoreceiver comes with many variations; photodiodes, bandwidth, spectral range & many other adjustable components.
Please contact us for more information.
Photoreceiver comes with many variations; photodiodes, bandwidth, spectral range & many other adjustable components.
Please contact us for more information.

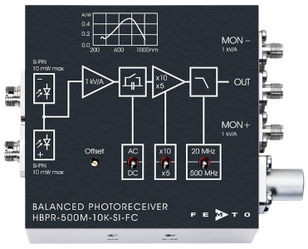

*NEW* balanced photoreceiver / PHOTODETECTOR SERIES HBPR
The HBPR series consist of a combination of two anti-parallel connected photodiodes with a subsequent low-noise transimpedance amplifier.
The photodiodes are carefully selected and matched in pairs to achieve the highest possible common mode rejection ratio (CMRR). The low input noise (NEP) and excellent common mode rejection set standards for balanced photoreceivers in the MHz range and enable highly sensitive signal detection. The high bandwidth allows the precise detection of laser pulses, even with high repetition rates and rapidly changing signal shapes, such as in quantum state tomography. The free space inputs are designed as 1.035"-40 threaded flange with screw-on coupler ring (FST) or as a 25 mm round flange without thread (FS). Both types open up broad compatibility with optical accessories such as lenses, tubes, cage systems etc. |
FEATURES
Bandwidth up to 500 MHz Common-Mode Rejection Ratio (CMRR) up to 55 dB Very low noise -NEP down to 3.7 pW/√Hz Si and InGaAs models for spectral range from 320 to 1700 nm Switchable 20 MHz low pass filter to minimize wideband noise High gain of up to 60,000 V/A, switchable in two stages Fast DC-coupled monitor outputs with 10 MHz bandwidth 1.035 "-40 threaded free space input, compatible with many standard optical systems |
Femtowatt Photoreceiver Series FWPR-20
The FWPR-20 series is a combination of low noise Si or InGaAs PIN photodiodes, a specially designed transimpedance amplifier with extremely high gain of up to 1012 V/A.
This combination results in Femtowatt sensitivity due to the photoreceiver's exceptional low NEP of 0.7 fW/√Hz. With their exceptionally high sensitivity, the FWPR-20 series is capable of replacing APDs, PMTs and cooled Ge photodiodes for many applications. No expensive high voltage power supply or cooling is required. |
FEATURES
Ultra-low-noise – NEP 0.7 fW/√Hz Transimpedance amplifier with high gain up to 1012 V/A included Wavelength range from 320 nm to 1700 nm |
DC TO 2 KHz Picowatt Photoreceivers PWPR-2K
PWPR-2K series is an ultra-sensitive photoreceiver; picking up even the smallest signals from 100 fW up to 10 nW. In addition to precise and fast CW-measurements, the relatively large bandwidth from DC to 2 kHz also allows time-resolved and modulated measurements.
It is also highly compatible with optical bench, fibre optics & many optical standard accessories (i.e. tubes, lenses, cage systems, optical adapters), making it the perfect photoreceiver for all-rounded factory applications. |
FEATURES
Ultra-low noise, NEP ≤ 10 fW/√Hz Si and InGaAs models cover the wavelength range from 320 to 1700 nm Relatively large bandwidth; DC to 2 kHz Transimpedance gain switchable 10^9 V/A, 10^10 V/A Free-space input 1.035″-40 threaded, alternatively 25 mm diameter unthreaded Easily convertible to fiber optic input (FC and FSMA) with optionally available screw-on adapters Factory equipped with optical free-space input; 1.035″-40 threaded flange (FST) and a 25 mm unthreaded flange (FS) |
DC to 400 kHz Low Noise Fixed Gain Series LCA-S-400K
The LCA-S-40k series have remarkable performance. Using Si or InGaAs photodiode, it covers a spectral range from 400 to 1100 nm and 900 to 1700 nm. The amplifier transimpedance is 107V/A resulting in a maximum conversion gain of 9.5 x 10^6 V/W at 1550 nm for the InGaAs model.
Due to the low noise performance of the transimpedance amplifier, the minimum NEP is as low as 75 fW/√Hz, which allows for the detection of optical signals in the nanoWatt range without further averaging. |
FEATURES
Large spectral range; 400 to 1100 nm and 900 to 1700 nm Si PIN and InGaAs PIN photodiodes Wavelength range from 400 to 1700 nm Bandwidth from DC to 400 kHz Max. conversion gain 10^7 V/W Min. NEP 75 fW/√Hz |
DC To 200 MHz High Speed Fixed Gain HCA-S-200m Series
The sophisticated DC-coupled multistage amplifier design allows measurements from DC to a maximum bandwidth of 200 MHz corresponding to a minimum rise time of 1.8 ns.
With a noise equivalent power (NEP) as low as 5 pW/√Hz, HCA-S-200 series can detect signals with optical power in the micro Watt range without the need for further averaging. |
FEATURES
Si PIN and InGaAs PIN photodiodes Wavelength range from 320 to 1700 nm Bandwidth from DC to 200 MHz Max. conversion gain 1.9 x 104 V/W Min. NEP 5.2 pW/√Hz Free space or fiber optic input |
DC To 400 MHz High Speed Fixed Gain HCA-S-400m Series
The sophisticated DC-coupled multistage amplifier design allows measurements from DC to a maximum bandwidth of 400 MHz corresponding to a minimum rise time of 1 ns.
Due to the low noise design signals with optical power in the micro Watt range can be detected without the need for further averaging. Different models with free space or fibre-optic input are available. |
FEATURES
Si PIN and InGaAs PIN photodiodes Wavelength range from 320 to 1700 nm Bandwidth DC to 400 MHz Rise time 1 ns Max. conversion gain 4.8 x 10^3 V/W Free space or fiber optic input |
10 kHz up to 2 GHz Ultra High Speed Fixed Gain HSPR-X & HSA-X-S Series
The HSPR-X and HSA-X-S offer an upper bandwidth limit of 2 GHz.
Two models with either a fast Si-PIN or InGaAs-PIN photodiode cover a spectral range from 320 to 1000 nm and 900 to 1700 nm, respectively. Due to the sophisticated amplifier design, the minimum NEP is just 11 pW/√Hz at a transimpedance of 5 x 10^3 V/A, allowing measurements of optical power levels in the µW range with GHz speed. |
FEATURES
Si PIN and InGaAs PIN photodiodes Upper bandwidth limit of 2 GHz Wavelength range from 320 to 1700 nm Ultra-wide bandwidth from 10 kHz up to 2 GHz Max. conversion gain 4.75 x 10^3 V/W Min. NEP 11 pW/√Hz |

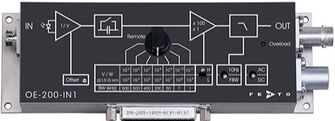

DC up to 500 kHz Variable Gain Fast Power Meter OE-200 Series
The OE-200 is the photoreceiver that delivers fast & precise measurements for small optical signals for a wide variety of applications. It is a multi-function, all-purpose lab photoreceiver. Its high sensitivity is achieved by a low noise design resulting in a noise equivalent power (NEP) of minimum 6 fW/√Hz.
The many additional features like switchable signal filters, an offset adjustment and the capability to switch between manual and opto-isolated remote (control by a PC) are what makes the OE-200 the most versatile photoreceiver in its class. |
FEATURES
Adjustable conversion gain from 10^3 to 10^11 V/W Operating range from fW to mW Spectral range from 190 to 1700 nm NEP down to 6 fW/√Hz Bandwidth up to 500 kHz Rise time down to 700 ns Fiber optic or free space input Calibration for all fiber optic models Manual and Remote control |

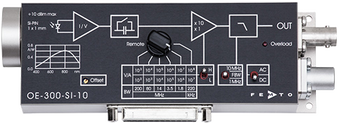

DC up to 200 MHz Variable Gain OE-300 Series
The OE-300 is an all-purpose low-noise (O/E converter) premium class photoreceiver; superior quality photodiode followed by a high-end, variable gain transimpedance amplifier. The relatively large-sized detectors make optical alignment easy and also ensure a very high coupling efficiency when using the Si models together with the optionally available fibre optic adapters PRA-FC/SMA.
The switchable gain from 10^2 to 10^8 V/A (decade increments) allows precise and reliable measurements within an extensive dynamic range from nanowatts up to 10 milliwatts optical power. It is also a very versatile series; switchable low-pass filters, offset adjustment, switchable AC/DC coupling and the capability of manual and optoisolated remote control by a PC. What makes the OE-300 so versatile not only holds in its many additional features but also in its high compatibility with the different types of benches, breadboards, cage systems & fibre optics. |
FEATURES
Adjustable transimpedance gain from 10^2 to 10^8 V/A Wide bandwidth up to 200 MHz Various Si and InGaAs models covers 320 to 1700 nm wavelength range High dynamic input range up to 10 mW optical power Large optical detector size up to 3 mm dia. Very low noise, NEP down to 47 fW/√Hz Switchable low pass filters for minimizing wideband noise Fiber optic and free space input 1.035"-40 threaded free space input compatible with many optical standard accessories Full manual and remote control capability |
related Products
Current Amplifiers
|
Voltage Amplifiers
|
GHz Wideband Amplifiers
|

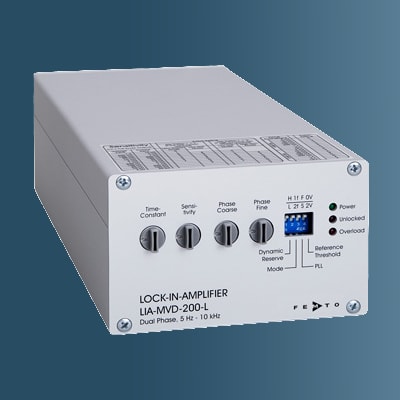

Lock-In Amplifiers
|
