microscopy stage
The X-Y mechanical stages allow samples to be moved across the microscope to observe the different parts of the specimen in a scale that is impossible by hand. The manual stage allows the the freedom to move across wide surface area, the motorised stage allows precise and accurate movements.

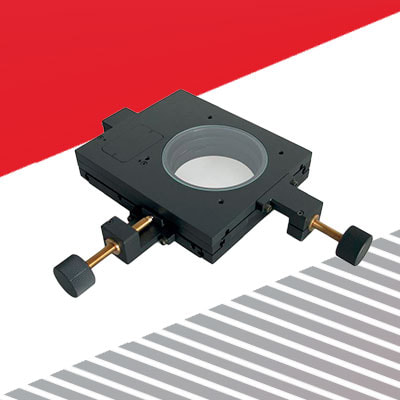

MANUAL STAGES
EK-SERIES
The manual mircroscopy stages is made for a wide range of microscopes (i.e. inverted/ upright).
Our manual stages has a wide range of movement of up to 300 x 300 mm, allowing the freedom to observe specimen in a more holistic image. The manual stages also comes with other features (i.e. patented coarse adjustments) to for better applications. |
MOVEMENT RANGE
100 x 100 mm Click here 150 x 150 mm Click here 200 x 200 mm Click here 300 x 300 mm Click here MICROSCOPE COMPATIBILITY Please contact us for microscope compatibility |
Motorised Stages
SCAN PLUS SERieS - INTEGRATED WITH MEASURING SYSTEM
The SCANplus series is an upgrade from the SCAN series. It comes with integrated measuring system and it is highly compatible with most microscopes. The models in the SCAN series is uniquely designed each with its own unique ergonomic features (i.e. rounded edges for better compatability, and easy-clean surface), it is also compatible with the stage inserts for a more customised application. It comes with models catered for both for upright and inverted microscopes.
The SCAN plus is a premium series, designed for applications with ultra-precise movement and measurement requirements. All of SCANplus series comes with a 5 year warranty. |
FEATURES
Travel Range* 100 x 100 mm ~ 300 x 300mm Screw Pitch Ball/ Lead - 1~4 mm Accuracy +/–1 μm Resolution +/– 0.05 μm (smallest step) Highly Compatible (designed) with Olympus IX53 / IX73 / IX83 Olympus IX51 / IX71 / IX81 Leica DMI3000 - DMI6000 Nikon Eclipse Ti * Dependent on the model **Contact us for more information |
SCAN SERIES
The SCAN series is integrated electronic stage identification device ETS for automatic identification of the scanning stage and parametrization of the controller. It comes with models catered for upright and inverted microscopes.
Each model is designed with its own unique features (i.e. 8 slides to allow multiple inserts) to cater to the different needs of the applications.The inverted SCAN series has a wide design range; some of the models can even be optically upgraded. (i.e. stage inserts / motorised focus stages) SCAN IM is the microscope stage is designed for inverted microscopes. All SCAN series comes with a 5 year warranty. |
FEATURES
Travel Range* 75 x 30 mm~300 x 300 mm Screw Pitch Ball Screw Pitch - 1~4 mm Accuracy ~ +/–3 μm Resolution 0.05 ~0.01 μm (smallest step) Highly Compatible (Design): Leica DM4000 - DM6000 Nikon Olympus BX series Zeiss Axio Imager * Dependent on the model **Contact us for more information |
ECO-SERIES
The ECO Series is a the more economical version of the SCAN series. The ECO series is built with a vision in mind; to build a practical multi-function stage while staying ergonomic for its users.
The ECO series is integrated with measuring & controlling systems, this multi-function systems eliminates the need for other components. It is ergonomically designed such as single cable solution (all in one cable for both stage & controller) one-hand operations (single-handedly inserts slides) to enhance the overall user experience. This series is also made rugged, with wear-resistant CERASIST® surface. This series comes with the option of having integrating coaxial drive with 2 speed ranges for coarse positioning or fine adjustment. |
FEATURES
Travel Range 75 x 50 mm Accuracy +/–3 μm (measured according to VDI/DGQ 3441) Resolution ~ 0.05 μm Drive X-axis: bowden cable Y-axis: rack – pinion **Contact us for more information |
BASIC SERIES
The basic series is catered for simpler applications, with less stringent specifications. This series is also made rugged, with wear-resistant CERASIST® surface. Made ergonomically with coxial drive that is equipped with adjustable height and friction.
|
FEATURES
Travel Range 76 x 52 mm Click here 75 x 30 mm Click here Accuracy ±20 μm Drive Rack – pinion Travel Speed max. 120 mm/s **Contact us for more information |
If you require precise measurements, the microscopy stages can be used together with the measuring stage to achieve this result.
Related INstruments
Measuring Stage
|
Micromanipulators
|
Motorised Focus Drive
|
|
*Pictures shown above are for reference only. Actual product may differ slightly.
**Some products may not be available in all countries. Please contact us for further information and clarification. |
