Nanosecond Lasers
cat series

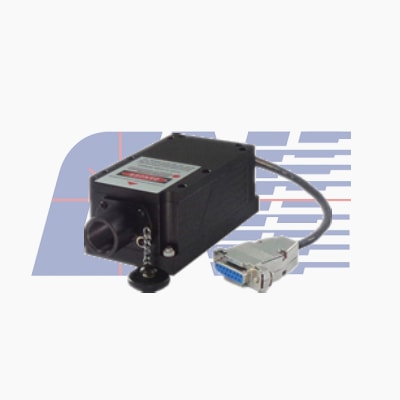

The TEC-045 CAT laser is a nanosecond pulsed diode laser system. Pulse width and repetition frequency are adjustable via remote control. It provides optical pulses for applications as time resolved fluorescence spectroscopy.
|
SPECIFICATIONS
Peak Output Power up to 300mW / 30nJ Wavelength Range 630nm .. 1650nm 375nm .. 470nm, under preparation Beam Divergence < 5mrad Pulse Length < 5ns .. 75ns, quasi CW available Repetition Rate 16kHz .. 67MHz |
nanosecond pulsed laser

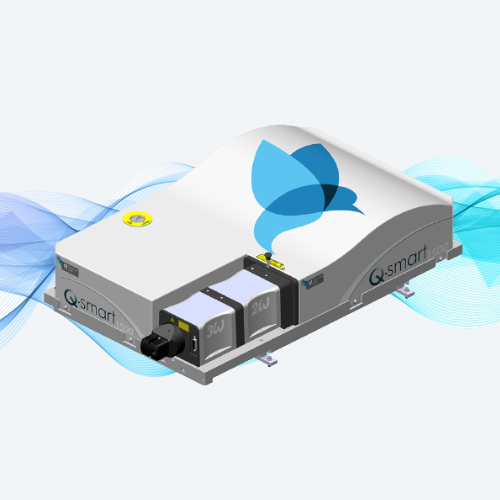

The nanosecond pulsed laser system based its sources on diode-pumped passively Q switched solid state microchip technology.
Each laser is designed to be highly efficient; producing very small footprint, with short pulsed by excellent beam properties. It is also designed specifically to be user-friendly; each laser is a plug-and-play system, with internal & external triggering modes for a easier application. Each system comes with control unit, power supply and software, designed to be readily retrofitted into other systems. |
SPECIFICATIONS
Repetition Rate up to 100 kHz (dependent on model) Wavelength Dependent on model Energy up to 2500 µJ Pulsed Width ≤ 2.5 ns * Specifications may vary depending on the model provided. |

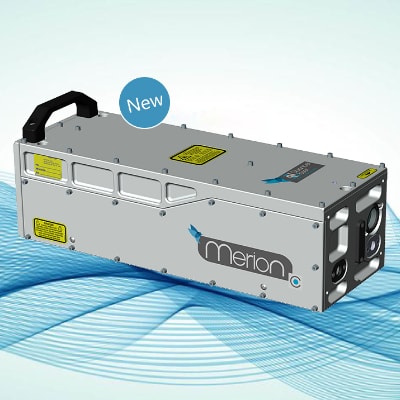

Nanosecond CONTINUOUS WAVE LASER
Similar to the pulsed system, the nanosecond continuous wave laser is designed to be user-friendly,it is a hands-off plug-and-play systems with single frequency operation. It is a true continuous wave by excellent beam properties, has low noise & long coherence length with closed loop control of adjustable output power.
The CW nanosecond wave laser is ideal for lithography,interferometry, raman and other types of spectroscopic applications. |
SPECIFICATIONS
Power Stability up to ≤ 2.0 % rms Wavelength 266nm Power up to 500 mW Beam Propagation Factor ≤ 1.3 M² * Specifications may vary depending on the model provided. |
We also have other nanosecond lasers such as Nd:YAG lasers .
Related Instruments
DPSS Lasers
|
High Energy Pulsed Lasers
|
Nd:YAG Lasers
|

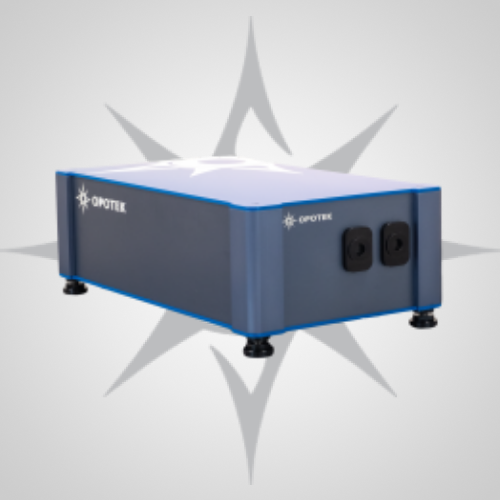

OPO Tunable Lasers
|
