Optical Parametric Oscillator (OPO) Tunable Laser
Stand-alone OPO module
Compacted & Portable Series
This series has one of the smallest OPO tunable laser and require zero installation.
The rugged design also gives this series its durability and longevity; against unpredictable and harsh environmental conditions during shipping and applications. Requiring zero installation, an integrated verification hardwave is installed check alignment after shipping or relocation. This series comes with different tuning range & peak OPO energy. The series also has some of its lasers build with specific functions as the following:
|
SPECIFICATIONS
Tuning Range 410 – 2200 nm 680 – 2400 nm 2700 – 3100 nm 3000 – 3450 nm Peak OPO Energy 6 mJ @ 2940 nm 9.4 mJ @ 450 nm 13 mJ @ 750 nm * Specifications may vary depending on the model provided. |
Photoacoustic Series
This series is designed for the end-users in mind; catered specifically for photoacoustic applications. The unique fast-tuning technology allows the lasers to work with a higher efficiency as compared to its competitors. This series comes with different tuning range , peak OPO energy & size for portability. The series also has some of its lasers build with specific functions as the following:
|
SPECIFICATIONS
Tuning Range 690 – 950 nm 1200-2600 nm 2700 – 3100 nm 3000 – 3450 nm Peak OPO Energy 140 mJ @ 750 nm (before fiber) * Specifications may vary depending on the model provided. |

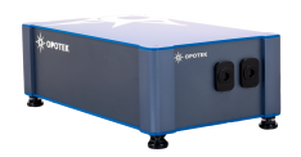

RADIANT Series
This is a versatile series; using optical parametric oscillator (OPO) technology to generate wavelength over a broad range in the UV-Vis/IR.
This series comes with different tuning range , peak OPO energy & size for portability. The series also comes with different techniques:
|
SPECIFICATIONS
Tuning Range RADIANT X10 2700 – 3100 nm (QX4110P) 3000 – 3450 nm (QX4110A) RADIANT X20 650 – 2600 nm RADIANT X30 410 – 2500 nm 210 – 2500 nm (w/ UV option) Peak OPO Energy RADIANT X10 18 mJ (QX4110P) 12 mJ (QX4110A) RADIANT X20 60-120 mJ @ 750 nm RADIANT X30 40-70 mJ @ 450 nm 7-10 mJ @ 320 nm (UV option) * Specifications may vary depending on the model provided. |
Related Instruments
High Energy Pulsed Lasers
|
Nanosecond Lasers
|
Nd:YAG Lasers
|
Spectroscopic Systems
|
Tunable Laser Systems
|
|
*Pictures shown above are for reference only. Actual product may differ slightly. **Some products may not be available in all countries. Please contact us for further information and clarification. |
