Tunable Laser Systems
basiScan
The basiScan broadband OPO is coming with a simple and reliable design in a compact package. It covers a wide wavelength range from visible to mid-IR.
Reliability and long lifetime are achieved thanks to a soft pumping scheme. basiScan is pumped @ 355nm by Q-smart 450 or Q-smart 850. |
SPECIFICATIONS
Tuning range
Signal: 410 nm - 690 nm Idler: 730 nm - 2500 n Beam divergence < 10 mrad Pulse width 0-3 ns shorter than pump |

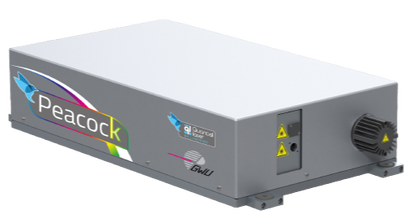

Peacock 532
The Peacock 532 is a tunable pulsed nanosecond laser source in the near IR. It includes a compact and rugged CFR‐type Nd:YAG laser pumping a state‐of‐the‐art OPO.
The whole unit is integrated on a single bench, which can easily be inserted into a complex system. With its fully automated wavelength selection, real‐time output energy control or laser beam shaping capability, it has outstanding versatility Peacock is then the ideal tool for users who are looking for a high quality laser for demanding applications in the medical, biotechnology or spectroscopy fields. |
SPECIFICATIONS
Wavelength (nm)
Signal: 680 - 980 Idler: 1150 - 2200 Peak energy (mJ) @ 725 nm 35 Repetition rate (Hz) 30 Pulse duration (ns) < 9 Beam diameter (mm) 6 Linewidth (nm) @ 725 nm < 3 Beam delivery Customer defined fiber coupled or free space |
primoScan
The primoScan is a fully integrated midband or broadband OPO with a wide tuning range from 190 nm to 2750 nm. It can be configured for ultra-low divergence operation and has high efficiency in the UV.
It is fully motorized and computer controlled with fast shot-to-shot wavelength switching. primoScan is pumped @ 355 nm by the whole Q-smart series of Nd:YAG lasers. |
SPECIFICATIONS
Tuning range
Signal 405 nm - 690 nm 405 nm - 690 nm Idler 730 nm - 2700 nm 730 nm - 2750 nm Tuning range UV NA 190 nm - 405 nm Wavelength Shift Time < 100 ms Beam divergence < 10 mrad < 2 mrad Pulse width 0-3 ns shorter than pump |

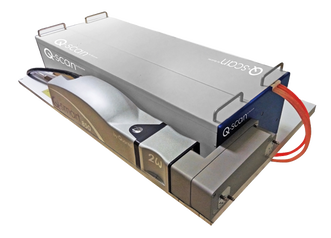

Q-scan
The Q-scan is a high resolution nanosecond dye laser ranging from 200 nm to 4.5 µm.
Ultra-high precision mechanics ensure extreme wavelength accuracy and makes this laser ideal for combustion and high resolution spectroscopy applications. The Q-scan’s exceptional linearity (< 2 pm) ensures highest wavelength accuracy during scan. |
FEATURES
Wavelength: 200 nm - 4.5 µm
Extreme wavelength accuracy and reproducibility High efficiency- Excellent beam quality Quick dye change with plug and play dye cells Easy scan with integrated look-up tables for NLOs Integrated beam deviation compensator Fully integrated system with Nd:YAG pump lasers |

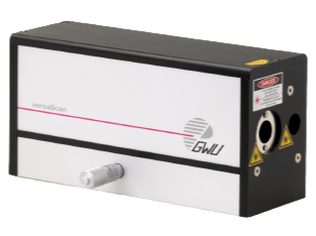

versaScan-L532
The versaScan is a modular OPO that can reach high energies in the near IR. It can be configured for either broadband or midband operation.
Reliability and long lifetime are achieved thanks to a soft pumping scheme. versaScan is pumped @ 532nm by the whole Q-smart series of Nd:YAG lasers |
SPECIFICATIONS
Tuning range
Signa l675 nm - 980nm 660 nm - 1000 nm Idler 1170 nm - 2440 nm 1140 nm - 2550 nm Linewidth 45 cm-1 - 200 cm-1 8 cm-1 - 20 cm-1 Beam divergence 7 mrad - 20 mrad Horizontal: < 2 mrad Vertical: 7-18 mrad Pulse width 0-3 ns shorter than pump |
