Wafer Probing >> Probe Stations & Equipments >> Support for Probe Station

sUPPORT FOR PROBE STATION

Tip Holders

The tip holders are categorised based on the different mount types & tip holder connectors. For RF measurement inquiries & professional suggestions please contact our professionals with configuration information.

​MOUNT TYPES

Screw-locked
A screw at the shank end will secure the tip in place

Spring-loaded
A spring loaded mechanism will allow user to place and secure tip

Tubular
A clamp within the tube will securely hold the needle
Includes soft-landing inclination, optimal for thin-coat sensitive devices

TIP HOLDERS CONNECTORS

Coaxial
Triaxial

Probe Tips

Everbeing carries a range of probing tips for your application.
​
Tungsten and BeCu tips are 20 mil shank at 1.26″ length.

Cat-whiskers are 20 mil Nickel shank at 2.2″ length.
Gold Plated On Request for 10 µm or larger

Bended Tips On Request

Hot Chucks

Our hot chucks are capable of heating your device under test up to 700°C. Our selection ranges depending on chuck size and maximum required temperature for your experiments.
FEATURES
​
Chuck Size
2″, 4″, 6″, 8″, 12″

Temperature Range
100, 150, 200, 300, 400, 500, 600, 700

Temperature Accuracy of +/- 0.5°C
Stainless steel chuck

Other Accessories

There are many other supporting equipment and accessories (some of them not mentioned) provided by EVERBEING, including customisations.

Please contact our professionals to provide your specifications here.
ACCESSORIES

​Shielding Box
Vibration-Free Box/Table/Table Top
RF Head / DC bias Calibration Substrate
Triaxial / BC Adapter
RF Adapter
Vaccum Pump
Tester Shelf

Related Instruments

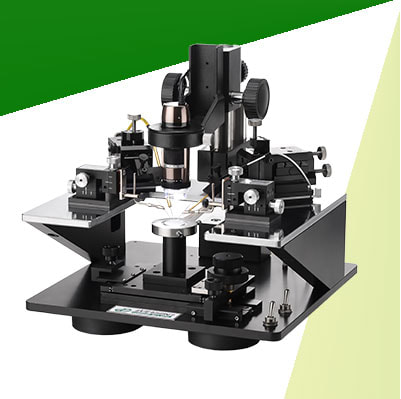

Probe Station

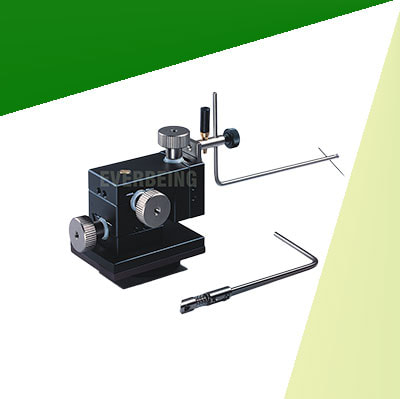

Micropositioner

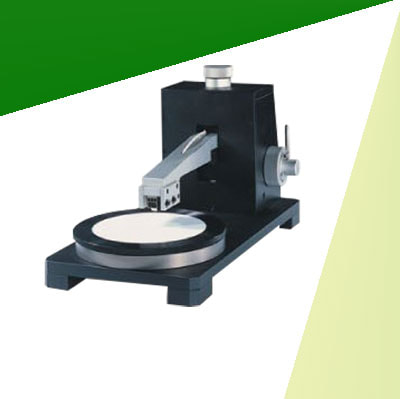

4-point probe
High Impedance Probes
