spectrometers & monochromators
focal length imaging spectrometers
short focal length (140 nm)The short focal imaging spectrometers is a mini-sized, compacted, rugged & high throughput optical system. It is an ideal, affordable tool for a wide range of spectroscopic applications.
The Triax is a triple grating mounted in a single turret spectrometer series, allowing tremendous flexibility in the choice of the gratings for optimum resolution and desired spectral range. MicroHR spectrometer offers excellent flexibility and performance in a small and affordable package. ** for 1200 g/mm grating at 400 nm |
SPECIFICATIONS
Triax Series Focal Length 0.19 meters Entrance Aperture Ratio f/3.9 Grating Size 50 × 50 mm Scanning range 0–1400 nm** MicroHR Focal Length 140 mm Entrance Aperture Ratio f/3.88 Grating Size 32 x 32 mm Scanning Range 0 – 1000 nm (Manual) 0 – 1500 nm (Automatic)** |
mid focal length (320 & 550 mm)The mid focal length series is built on decades of experience in spectroscopy and represents the highest quality, performance and versatility of any spectrometers in this class.
This series is recognised internationally by their unique shape that contributed to their superior optical design & performance (i.e. CCD focus and alignment with external locking mechanism). The design also have up to 4 ports; with 2 entrance & 2 exits. |
SPECIFICATIONS
Focal Length 320 mm (iHR 320) 550 mm (iHR 550) Aperture f/4.1 (iHR 320) f/4.6 (iHR 550) Grating Size 68 x 68 mm (iHR 320) 76 x 76 mm (iHR 550) |
long focal length (1m & 1.25 m)This spectrometer is ideal for applications when extremely low stray light levels are required, such as in Raman fluorescence excitation or when ultra high resolution is needed for emission structure analysis.
The ultimate spectrometer for ultra-high spectral resolution down to 0.006 nm |
SPECIFICATIONS
Focal Length 1 m (1000M) 1.25 m (1250M) Aperture f/8 (1000M) f/9 (1250M) Grating Size 110 x 110 mm Spectral Range 0-1500 nm |
High Resolution Spectrometer
With the fastest direct drive in this class, this hgih resolution spectrometer series offers a unique combination of speed, precision and high resolution, completely revolutionising the large spectrometer market.
Designed for researchers who require high accuracy with immediate results, the versatility of the FHR allows for utilisation over a wide spectral range, extending from the UV to IR. |
SPECIFICATIONS
Focal Length 640 mm (FHR 640) 1000 mm (FHR 1000) Entrance Aperture Ratio (Single Grating) f/5.4 (FHR 640) f/9.0 (FHR 1000M) Grating Size Single Grating 110 x 110 mm Double Grating 80 x 110 mm Scanning Range 0 – 1500 nm |
High Sensitivity Imaging Spectrograph
The new & revamp hypersensitive imaging spectrograph is designed for to the rapid compact spectrometer market. Offering the highest throughput or signal gathering capacity in this class, the Lumetta is employed a tall sensor and an F/2 design.
With a scientific grade one CCD that is cooled to -50 degrees, it offers a sensitivity to rival more in with the high-end benchtop systems. Additionally being imaging spectrograph enables advanced techniques such as multitrack spectroscopy and hyperspectral imaging. |
SPECIFICATIONS
Focal Length 140mm Aperture f/2 Spectral Range 400-1100 nm |
Related Instruments
Micro Spectrometers
|

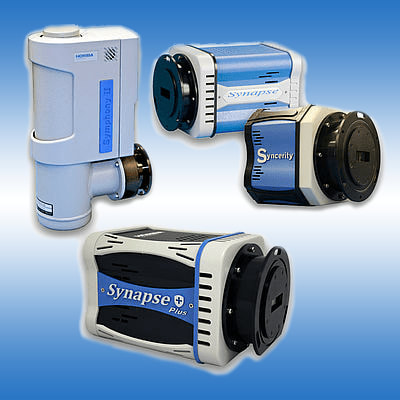

Spectrometers Detectors
|
Ellipsometers - with Monochromators
|

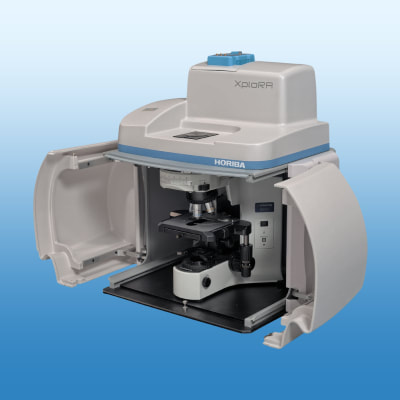

Raman Spectrometers
|

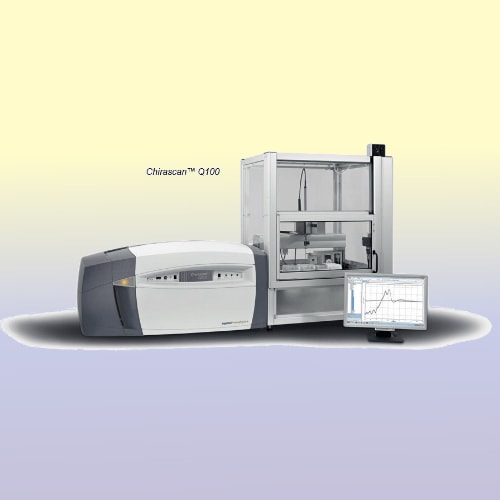

Circular Dichormeters - similar to Monochromators
|
|
*Pictures shown above are for reference only. Actual product may differ slightly.
**Some products may not be available in all countries. Please contact us for further information and clarification. |
