Electromechanical Solutions
With their modular and flexible design, solutions from aixACCT Systems let you measure the characteristics of your samples regardless of the operator and in line with the overall system specifications.
aixACCT creates User-friendly characterization for thin film, bulk, multilayer and more
aixACCT creates User-friendly characterization for thin film, bulk, multilayer and more

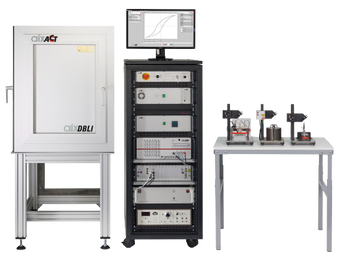

AixPES
Since the first system was delivered in 2002 as a customized
testing solution for bulk ceramics, the PES system became the in-official industry standard for piezoelectric testing. In general the system was used for comprehensive electrical and electro-mechanical characterization of piezoelectric bulk samples. |
FEATURES*
Flexible configurations The system can be extended according to customers testing demands due to the field upgradeability. Proven accuracy and repeatability Overall accuracy of the customized setup and not only for each of the components Unique temperature ranges Depending on the sample holder it is possible to do automated measurements between -100°C and 600°C. High automation The system can also be used for multiple sample testing using automated stages. |

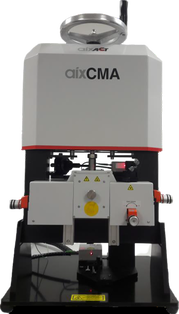

AixCMA
aixCMA systems can help you comprehensively characterize all kinds of actuators and sensors, such as multilayer, bulk materials, MEMS or fiber composites. These tools are based on our PES systems.
aixCMA systems let you record piezoelectric behaviour based on an excitation voltage. This makes it possible to determine factors like current, polarization, displacement and the resulting characteristic values. In addition, the systems are fitted with force controllers and control actuator amplifiers, as well as an expanded laser system in some cases. As a result, you can determine important actuator and sensor properties, including blocking force diagrams and actuator stiffness. Special, user-defined excitation signals for electrical and mechanical loads make it possible to analyse actuators under real application conditions. |
FEATURES*
Measurements of blocking force and actuator stiffness Electrical and piezoelectric measurements with large and small systems Determining the direct piezo coefficient at high forces Characterizing piezoelectric materials for energy harvesting applications Reliability and fatigue tests Leakage current measurements Temperature dependency of the above measurements |
aixSCAN
The Multi-Detector System (MDS) is a high premium alpha/beta counters. It is a high-throughput & low-background system for low-level background alpha and beta counting.
The system contains configuration that can accommodate 4, 8, 12, or 16 detectors in facilitating specific sample volume and throughput rate requirements. Each detector is mechanically independent, allowing changes (i.e. loading, counting, routine maintenance) done simultaneously with other applications. The MDS is ideal for applications looking to improve sample throughput when high sensitivity requirements are more important than long counting times. |
FEATURES
Highly sophisticated and flexible Use with bulk arrays. These are fitted with contact points for high-voltage contacting and determining material displacement. Histogram functions Data browsing Wafer mapping |
Related Instruments
Thermoelectric Products
|
Double Beam Laser Interferometer
|
Thin-film Memory Products
|
Parallel Test System
|
|
*Pictures shown above are for reference only. Actual product may differ slightly.
**Some products may not be available in all countries. Please contact us for further information and clarification. |
