raman Microscopes
Raman Spectroscopy is a non-destructive chemical analysis technique which provides detailed information about chemical structure, phase and polymorphy, crystallinity and molecular interactions. It is based upon the interaction of light with the chemical bonds within a material.
We provide a holistic range of Raman Imaging & spectrometer solutions for analytical measurements.
We provide a holistic range of Raman Imaging & spectrometer solutions for analytical measurements.
NEW: LabRam Soleil- the multimodal confocal raman imaging system
LabRAM Soleil™ Raman microscope is a fully-featured instrument. The multimodal instrument is designed with extended accessories & intuitive software; providing all the functionalities & beyond.
Equipped with multiple unique patented technology (Smart Sampling & QScan), Soleil Raman is ready to be your all-rounded companion for your projects & applications. |
FEATURES
Automation True self operating system Remote maintenance Auto check & realignment within seconds Ultrafast Imaging Fast grating turret drive - up to 400 nm/s Up to 100 times faster than a conventional Raman spectrometer Intuitive in-built software (LabSpec) with a wide selection of apps to customise for different specific needs |
Confocal Raman Imaging & High Resolution Spectrometer
The LabRAM Odyssey Raman microscopes are ideally suited for both micro and macro measurements, and offer advanced confocal imaging capabilities in 2D and 3D. The true confocal Raman microscope enables the most detailed images and analyses to be obtained with speed and confidence.
With guaranteed high performance and intuitive simplicity, the LabRAM Odyssey is the ultimate instrument for Raman spectroscopy. It is widely used for standard Raman analysis, PhotoLuminescence (PL), Tip Enhanced Raman Spectroscopy (TERS) and other hybrid methods. It is also available with an easy AFM upgrade. |
FEATURES
High spatial and spectral resolutions High throughput 800 mm single stage optimized spectrometer From deep UV to NIR without compromise Compatibility with a wide range of laser wavelengths and the possibility of mounting up to three detectors enables the measurement wavelength range to be extended from 200nm to 2200nm Ultra-fast confocal imaging Confocal Raman mapping with CCD integration times down to 1 ms per point and below Raman-AFM and TERS compatible |
Photoluminescence and Raman Wafer Imaging
The LabRAM Odyssey Semiconductor microscope is the ideal tool for photoluminescence and Raman imaging on wafers up to 300 mm diameter. The HORIBA best-seller true confocal microscope is equipped with automated 300 mm sample stage and objective turret to fit both needs of wafer uniformity assessment and defects inspection.
|
FEATURES
Wafer mapping with automated turret and sample stage Automated 300 mm × 300 mm XY sample stage accepts wafers up to 300 mm (12") diameter for Raman and Photoluminescence mapping of both full wafers and small regions of interest (ROI). Uniformity measurement with wafer tilt correction This function is rapid since it determines the optimum focus height at only at five points prior to mapping: in the center and four points at midway between the center and the corners PL and Raman metrology in one tool Availability of many excitation lasers together with the wide spectral range of the system, from deep UV to near IR, allows simultaneous measurement of photoluminescence and Raman signals in the same spectrum Highly efficient characterisation Methods will allow you to fully automate your entire Raman/PL characterisation routine Automated particle characterisation PF3 rapidly locates and chemically characterises contanminants on a full wafer. |
Multi-functional Raman and Imaging Spectrometer
Incorporating unique and powerful functions in a reliable, high-performance system, ideally suited to the research and analytical lab, the XploRA Series is our best multi-sample, multi-user Raman microscope ever.
XploRA INV is a multi-functional Raman & imaging spectrometer that specialised for biomedical or biological samples. XploRA™ PLUS is an integrated upright Raman system with intelligent automation, with the world's most compact footprint. Similar to the XploRA™ PLUS, XploRA™ ONE with high sensitivity. With superior CCDs & leading EMCCDs, the XploRA series provides easy & fast analysis for microscopy Raman throughout all analysis. |
FEATURES
Autocalibration, autovalidation, autoexposure, autofocus Upgradable to AFM & other combinations True confocal measurements with spatial resolutions One-click operations Fully automated laser switching |
Triple Raman Spectrometer
The triple Raman system is designed to provide a versatile platform for Raman analysis. It has an integrated triple spectrometer design for unprecedented optical stability. With ultimate flexibility; choices of single/triple additive/triple subtractive operative modes, microscope/macro-chamber sampling and the use of continuously variable lasers.
The instrument incorporates the proven technology of the confocal LabRAM Raman microprobe. The mechanical coupling is rigid and stable. The optical coupling is efficient and throughput is limited only by theoretical considerations. |
SPECIFICATIONS
Focal Length 640mm, all stages Aperture f/7.5 (dependant upon wavelength) Gratings 76 x 76 mm2; selection from over 50 gratings including the patented PAC gratings Mechanical Range 0-1000 nm (and above) |
Related Instruments

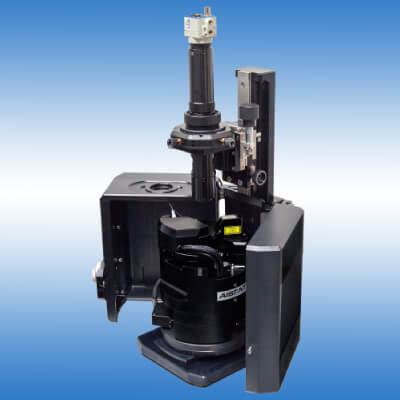

Atomic Force Microscope (AFM)
|

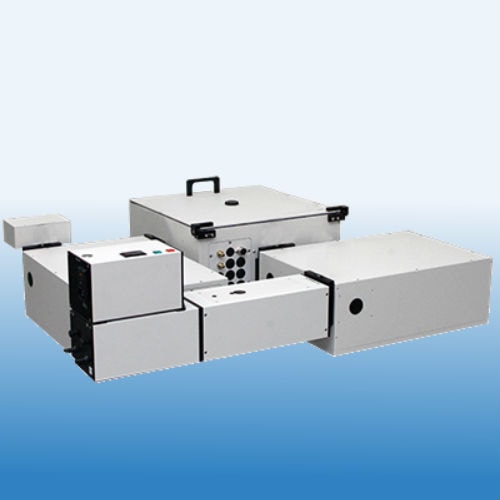

Fluorescence Spectrometers
|
